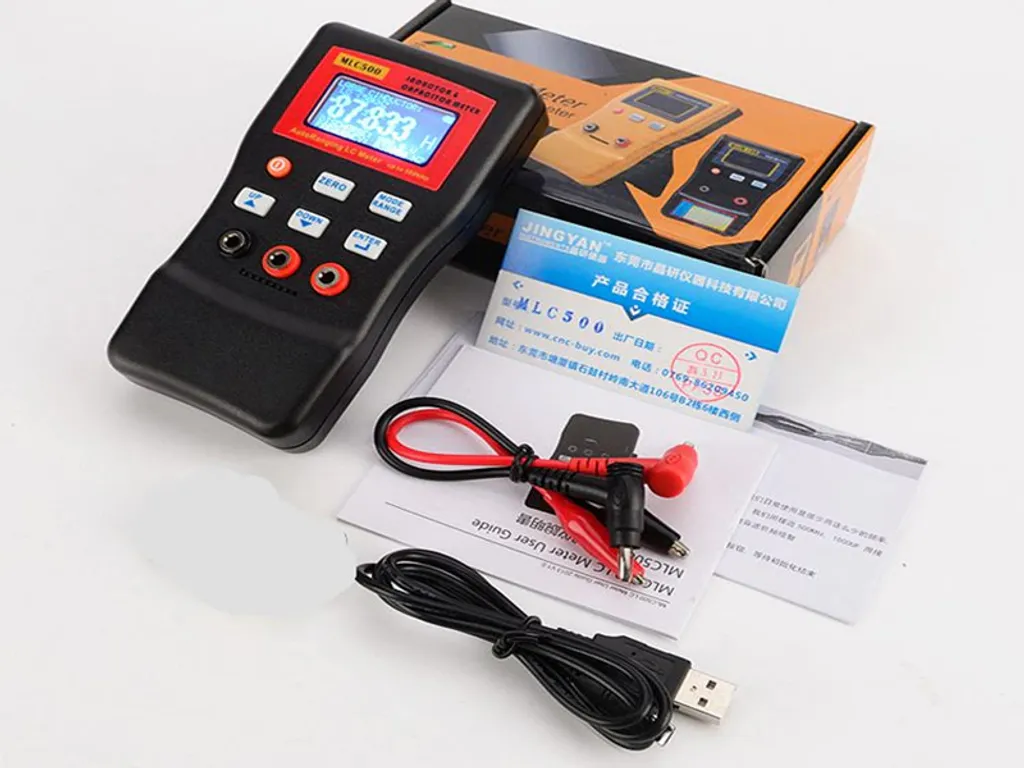

500kHz Digital Capacitance Inductance Meter Auto Ranging Component Tester MLC500 LC Meter LC And RC Oscillation With SMD Clip

RM 450.00


Auto-ranging component tester, can drive up to 500 KHz, suitable for small value capacitor and inductor measurement. It provides very stable and high resolution measurement up to 5 digits.



Features:

Fully auto-ranging designed, drive up to 500 KHz.

High resolution, up to 5 digit display, most finest resolution: 0.01pF, 0.001uH.

High stability and measurement range for L/ C.

Large LCD display with backlight, easy to read.

USB PC program, can take record and pass and fail component sorting function.

Capacitor discharge terminal and capacitor storage voltage display.



Notice:

Discharge capacitor before testing.

Please don't connect under testing device during power on, it will affect the initialization.



Specifications:

Color: Black

LCR Testing Parameter: Main Parameter: LC

Testing Frequency: C: 10 to 500Khz

             L: 10 to 360Khz

Testing Method: Auto Select LC and RC Oscillation

Calibration: Power on Auto Calibrate with Internal Reference Capacitor

Testing Voltage: ~1.5Vrms

Best Tolerance: L: 1% + 1 Digit

           C: 1% + 1 Digit

LCD Update or Testing Time (vary on component value): <3/s, (e.g.100mF Capacitor < 30s)

Range Selection: Automatically

Zeroing: Open / Short Circuit

Terminal: Mini- USB (Virtual Com Port)

Display Range: C                               0.00pF ~ 100.000mF(pF/nF/uF/mF)

          L                               0.000uH ~ 100.000H(uH/mH/H)

          Hz (LC Oscillation Frequency)            0 ~ 900000Hz

          (s) (RC Constant Time)                 0.000 ~ 99.999

LCD Display: 128x64 Dot Matrix, with Backlight

Number of Testing Terminal: Main 3, Secondary 2
